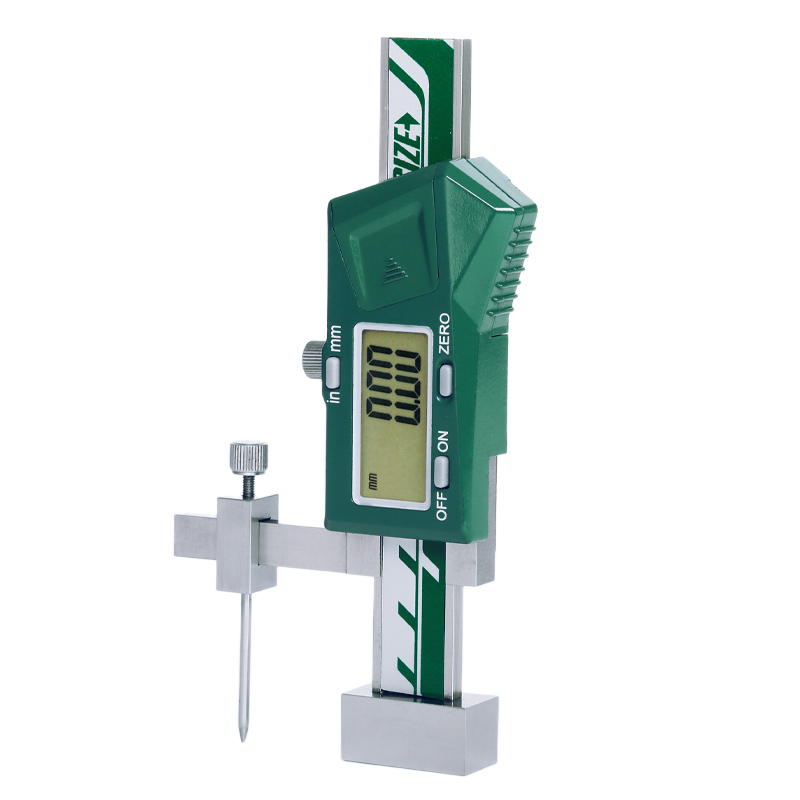

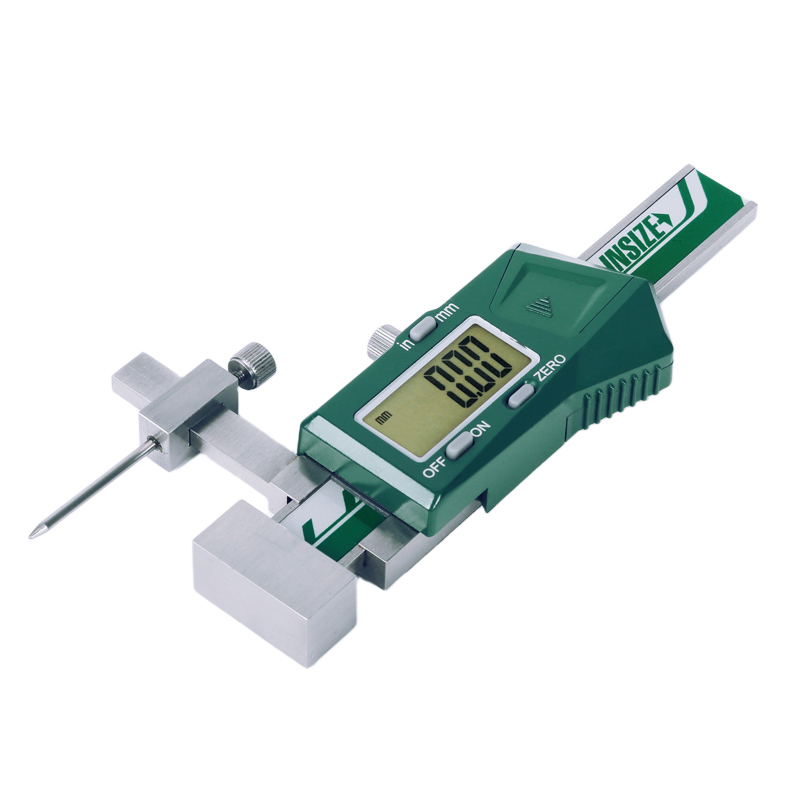

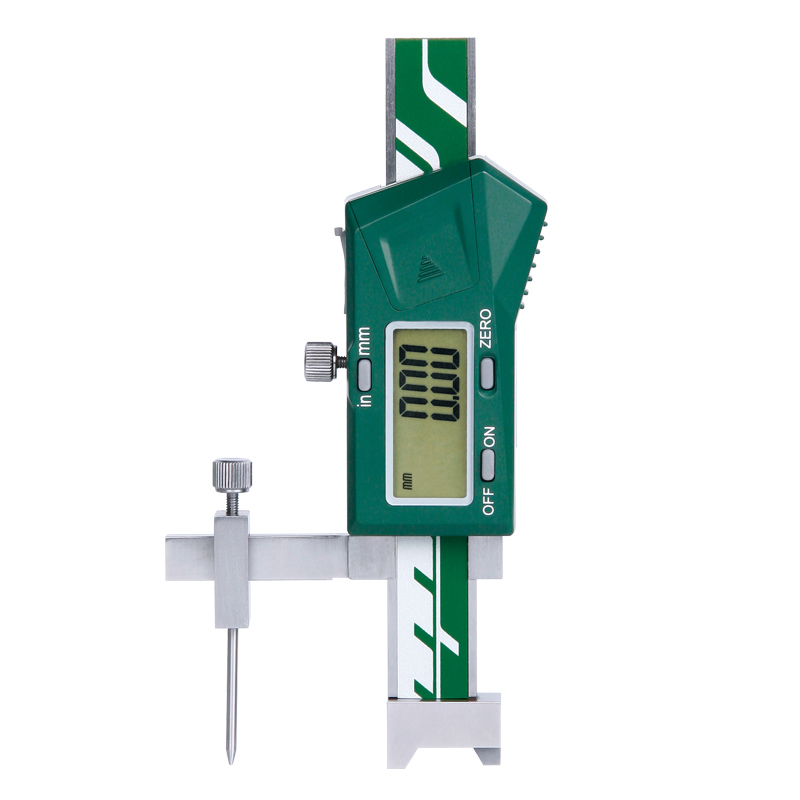

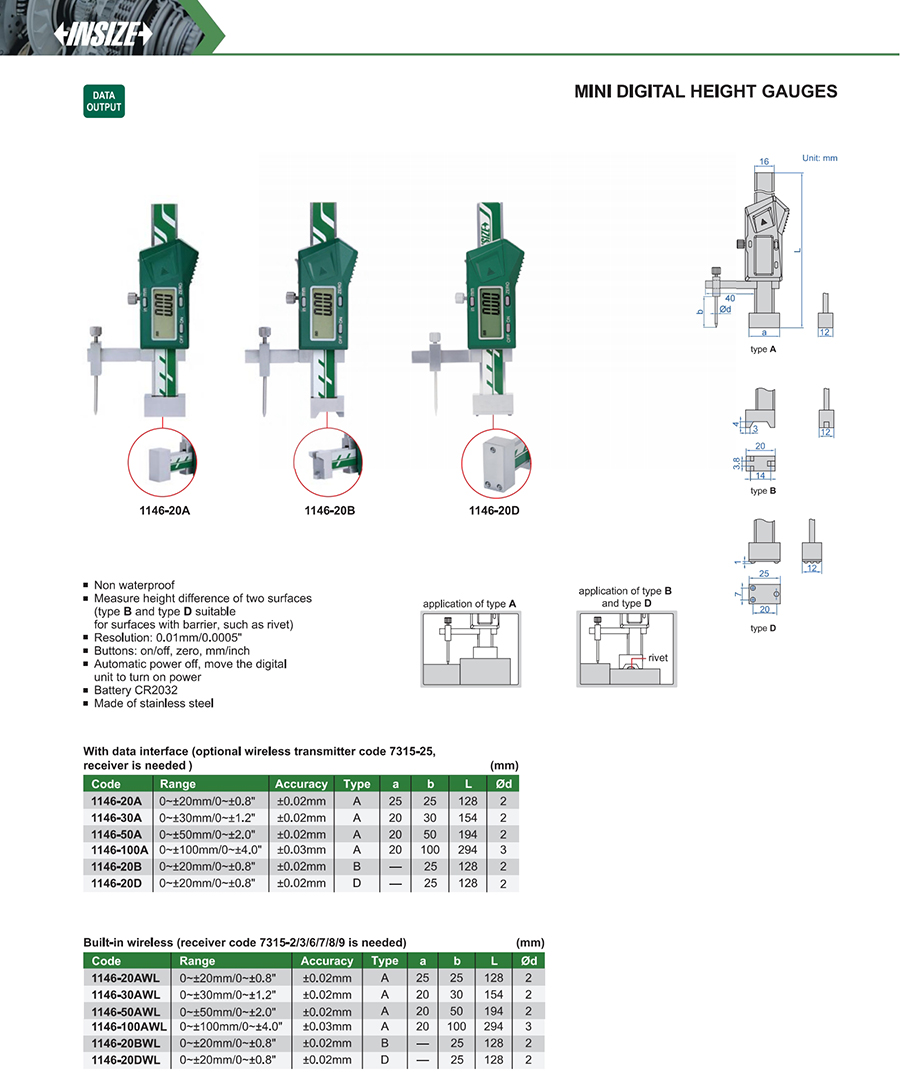

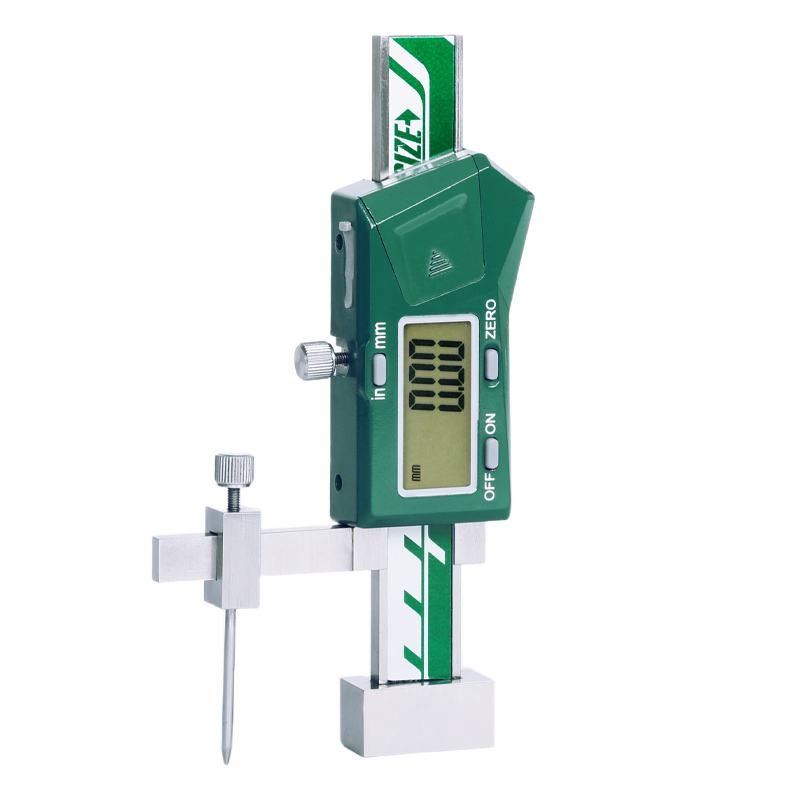

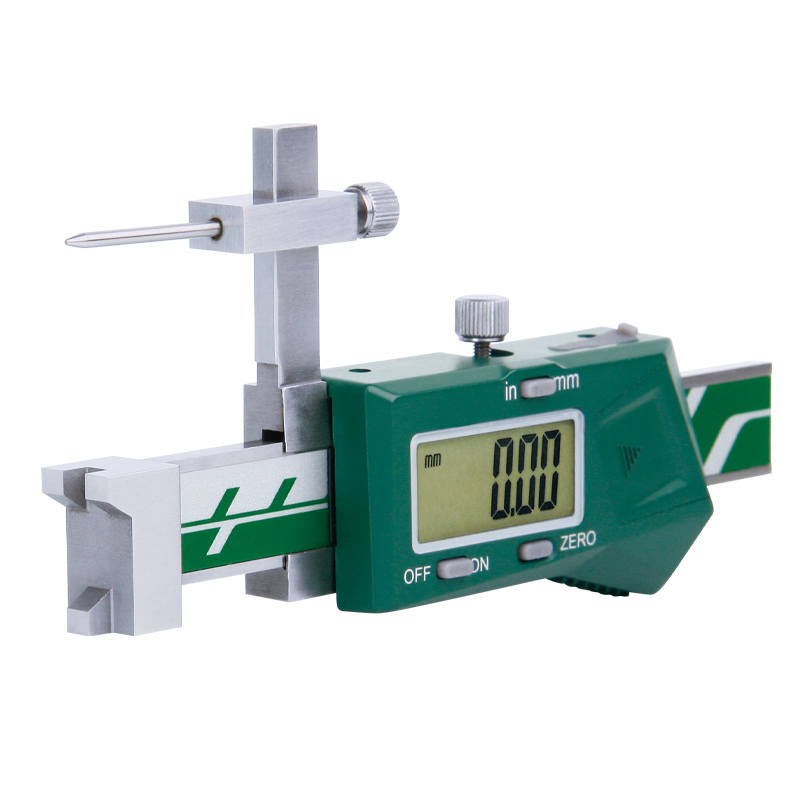

Mini Digital Height Gauges
Code: 1146
Non waterproof
Measure height difference of two surfaces (type B and type D suitable for surfaces with barrier, such as rivet)
Buttons: on/off, zero, mm/inch
Automatic power off, move the digital unit to turn on power
Battery CR2032
Made of stainless steel
| Code | Range | Accuracy | Resolution | Data output |
|---|---|---|---|---|
| 1146-20A | 0~±20mm/0~±0.8" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1146-30A | 0~±30mm/0~±1.2" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1146-50A | 0~±50mm/0~±2.0" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1146-100A | 0~±100mm/0~±4.0" | ±0.03mm | 0.01mm/0.0005" | with data interface |
| 1146-20B | 0~±20mm/0~±0.8" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1146-20D | 0~±20mm/0~±0.8" | ±0.02mm | 0.01mm/0.0005" | with data interface |
| 1146-20AWL | 0~±20mm/0~±0.8" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
| 1146-30AWL | 0~±30mm/0~±1.2" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
| 1146-50AWL | 0~±50mm/0~±2.0" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
| 1146-100AWL | 0~±100mm/0~±4.0" | ±0.03mm | 0.01mm/0.0005" | built-in wireless |
| 1146-20BWL | 0~±20mm/0~±0.8" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
| 1146-20DWL | 0~±20mm/0~±0.8" | ±0.02mm | 0.01mm/0.0005" | built-in wireless |
